736 - sunroof parts (body) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20T (2000 diesel turbo ) drive 2WD (two-wheel drive ) Manufacture period 05.1994 - 01.1997 grade SX transmission AT (automatic transmission )

---

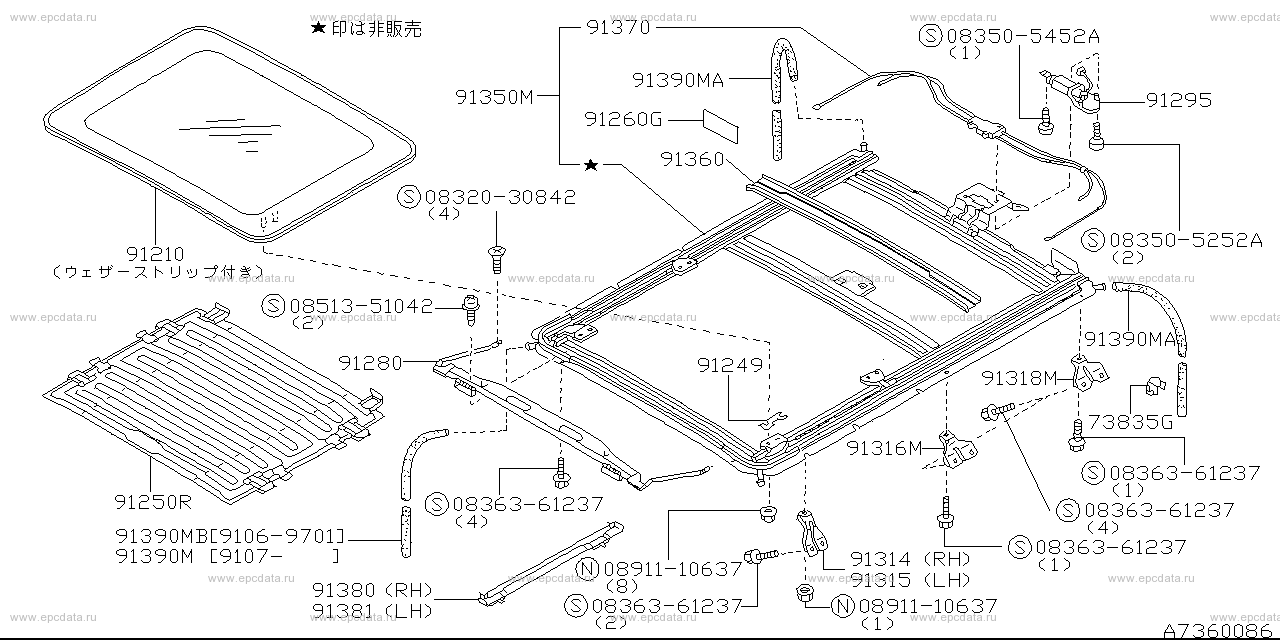

Applies for models	Manufacture period	Spec
W +4DV +5DV	08.1993 - 05.1994	リヤ（ＮＯ．１）
W +4DV +5DV	05.1994 - 08.1995	リヤ（ＮＯ．１）
W +4DV +5DV	08.1995 - 01.1997	リヤ（ＮＯ．１）
W +4DV +5DV	01.1997 - 01.1998	リヤ（ＮＯ．１）

Open full screen picture Up to the top

0832030842 083505252A 083505452A 0836361237 0851351042 0891110637 73835G - clip 91210 - lid assembly, sunroof slide 91249 - shim, lid 91250R - shade assembly, sunroof rear 91260G - protector 91280 - deflector assembly, sunroof 91295 - motor assembly, sunroof 91314 - bracket, sunroof front RH 91315 - bracket, sunroof front LH 91316M - bracket, sunroof center 91318M - bracket, sunroof rear 91350M - rail assembly, sunroof 91360 - drain assembly, rear 91370 - guide assembly, wire 91380 - trim, sunroof side RH 91381 - trim, sunroof side LH 91390M - hose, drain 91390MA - hose, drain 91390MB - hose, drain

---

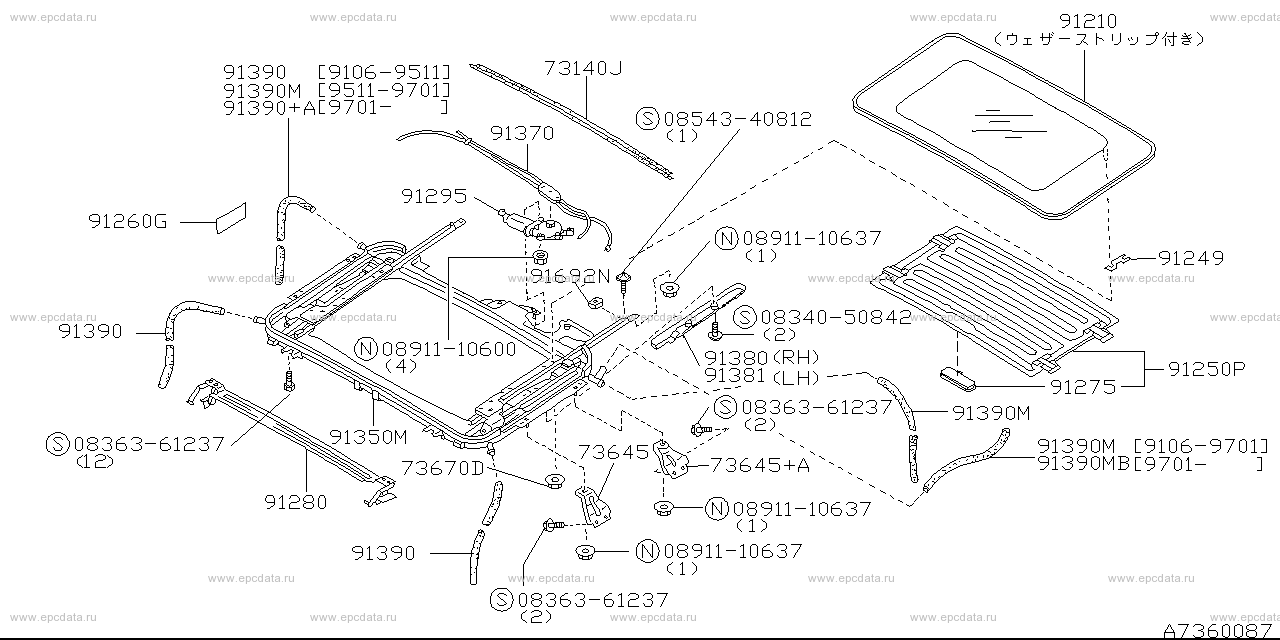

Applies for models	Manufacture period	Spec
W +4DV +5DV	08.1993 - 05.1994	フロント
W +4DV +5DV	05.1994 - 08.1995	フロント
W +4DV +5DV	08.1995 - 01.1997	フロント
W +4DV +5DV	01.1997 - 01.1998	フロント

Open full screen picture Up to the top

0834050842 0836361237 0854340812 0891110600 0891110637 73140J - protector, roof 73645 - bracket, frame sunroof 73645+A - bracket, frame sunroof 73670D - nut, flange 91210 - lid assembly, sunroof slide 91249 - shim, lid 91250P - shade assembly, sunroof front 91260G - protector 91275 - knob, finisher sunroof 91280 - deflector assembly, sunroof 91295 - motor assembly, sunroof 91350M - rail assembly, sunroof 91370 - guide assembly, wire 91380 - trim, sunroof side RH 91381 - trim, sunroof side LH 91390 - hose, drain front 91390+A - hose, drain front 91390M - hose, drain 91390MB - hose, drain 91692N - lock, shade

---

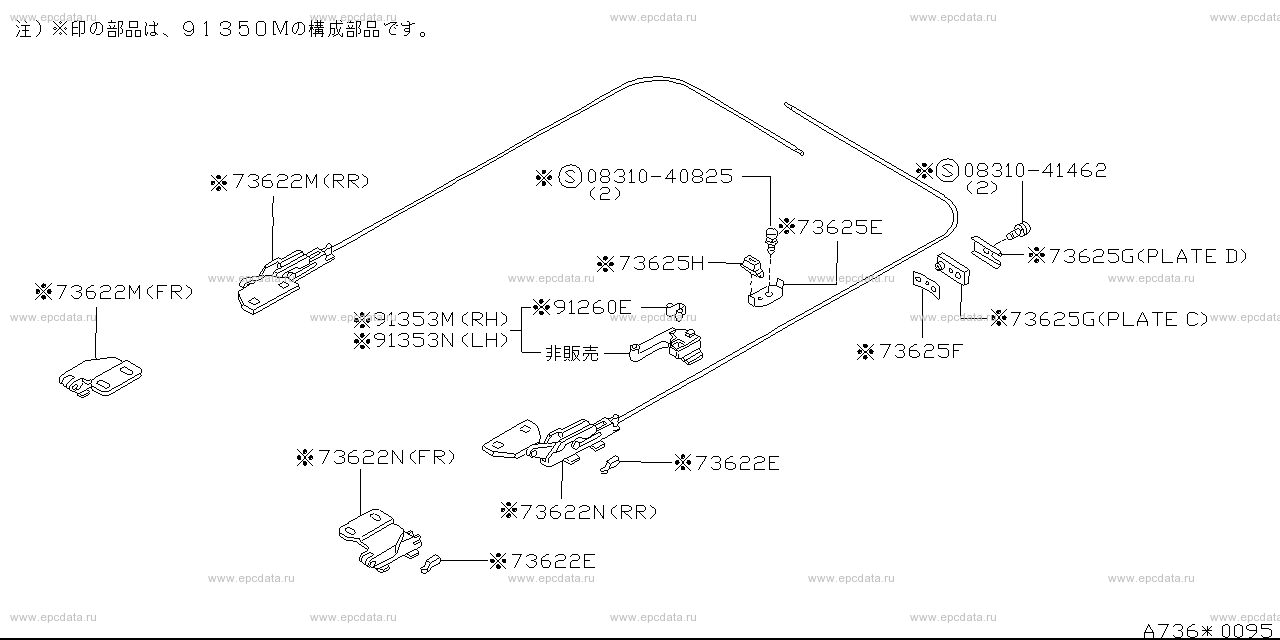

Applies for models	Manufacture period	Spec
W +4DV +5DV	08.1993 - 05.1994	リヤ（ＮＯ．２）
W +4DV +5DV	05.1994 - 08.1995	リヤ（ＮＯ．２）
W +4DV +5DV	08.1995 - 01.1997	リヤ（ＮＯ．２）
W +4DV +5DV	01.1997 - 01.1998	リヤ（ＮＯ．２）

Open full screen picture Up to the top

0831040825 0831041462 73622E - cap, slide 73622M - bracket, lid front RH 73622N - bracket, lid front LH 73625E - stopper, guide 73625F - packing, plate sunroof 73625G - plate, stopper 73625H - rubber, stopper 91260E - clip 91353M - drain guide RH 91353N - drain guide LH

Vanette Serena KVC23
